Machine specification

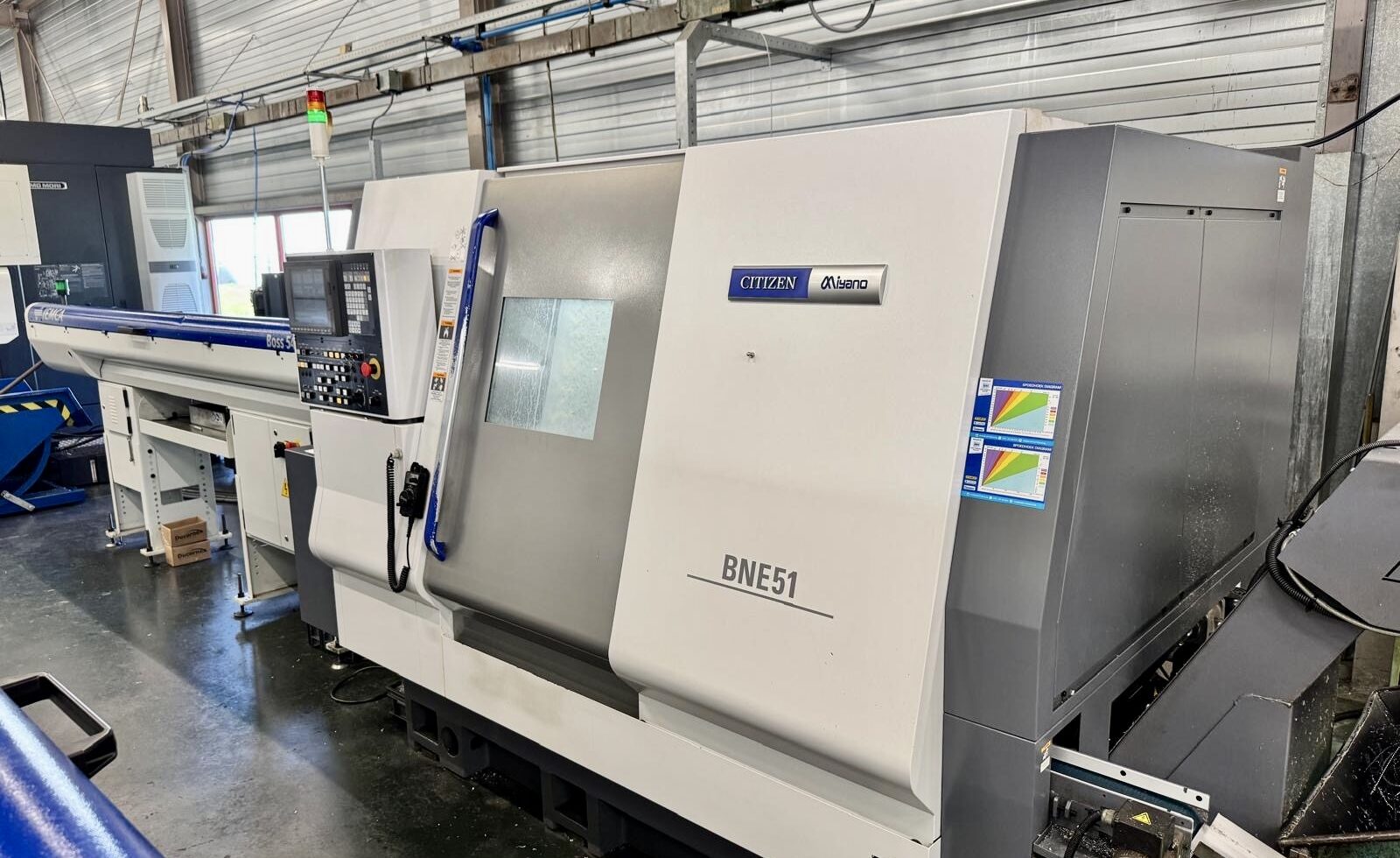

MIYANO BNE-51MSY
CNC Turning Centre
Manufacturer: MIYANO
Model / Type: BNE-51MSY
Year: 2018
Control: Mitsubishi
Working Range
- Maximum turning diameter: 165 mm
- Maximum turning length: 380 mm
- Maximum bar capacity: 51 mm
- Distance between spindles: 432 mm
- Y-axis travel: 80 mm (±40 mm)
- X1-axis travel: 195 mm
- Z1-axis travel: 380 mm
- X2-axis travel: 195 mm
- Z2-axis travel: 175 mm
- X3-axis travel: 155 mm
- Z3-axis travel: 450 mm
Main Spindle
- Maximum spindle speed: 5,000 rpm
- Spindle motor: 15/11 kW
- Spindle nose: A2-6
- Chuck size: 165 mm (6″)
- Draw tube diameter: 52 mm
Sub-Spindle
- Maximum spindle speed: 5,000 rpm
- Spindle motor: 7.5/5.5 kW
- Spindle nose: A2-6
- Chuck size: 165 mm (6″)
- Draw tube diameter: 52 mm
Tooling
- Number of turrets: 2
- Tool stations: 12 per turret
- Revolving tools: Up to 12 + 12
- Driven tool speed: Up to 6,000 rpm
- Tool shank size: 20 mm square
- Drill shank diameter: 25 mm
Machine Data
- Machine weight: 8,000 kg
- Floor space: 2,725 × 2,159 mm
- Machine height: 2,050 mm
Additional Information
- Twin-spindle, twin-turret CNC turning centre
- Y-axis machining capability
- X3-axis on the back spindle
- Superimposed control for simultaneous machining with up to three tools
- Maximum bar capacity of 51 mm
- Two 12-station turrets
- Up to 24 revolving-tool positions
Please note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling and equipment should be requested before purchasing, and we advise you to check any vital details before purchase.
The information is provided in good faith but is not guaranteed. Technical details should be confirmed before purchase.
