Machine specification

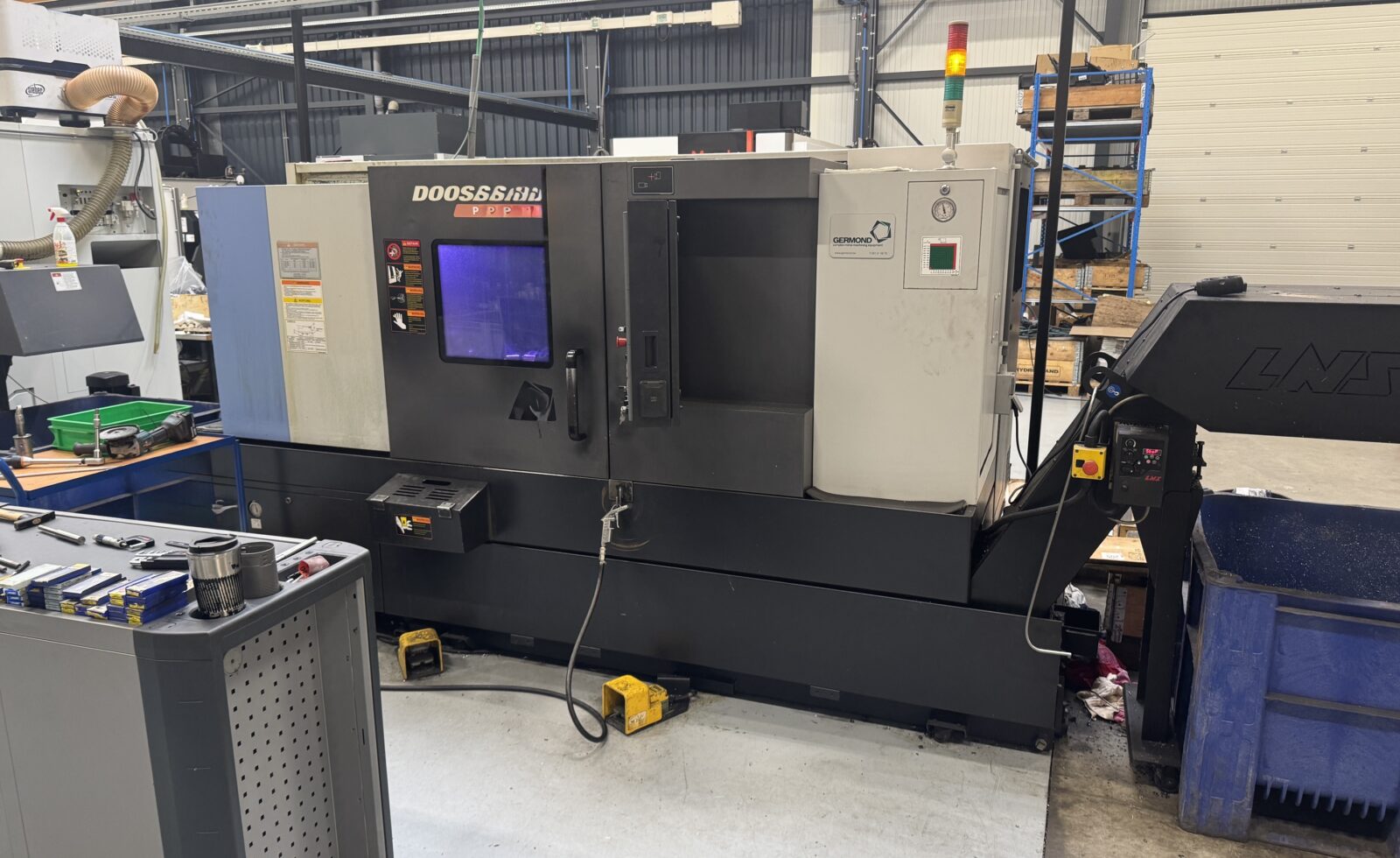

DOOSAN PUMA 2600
CNC Turning Centre
Manufacturer: DOOSAN
Model / Type: PUMA 2600
Year: 2014
Control: FANUC
Working Range
- X-axis travel: 260 mm
- Z-axis travel: 830 mm
- Maximum turning length: 760 mm
- Maximum turning diameter: 480 mm
- Maximum swing diameter: 780 mm
- Maximum bar capacity: 76 mm
Main Spindle
- Maximum spindle speed: 4,000 rpm
- Spindle hours: Only 6,100 hours
Tooling
- Tool changer: 12-position ATC
Equipment & Accessories
- Tailstock
- Parts catcher
- Swarf conveyor
Machine Data
- Machine weight: 5,400 kg
Additional Information
- CNC turning centre equipped with FANUC control
- Maximum bar capacity of 76 mm
- Supplied with tailstock, parts catcher and swarf conveyor
- Only 6,100 spindle hours
Please note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines may be in production at the time of photography and availability cannot be guaranteed. We advise you to check any vital details before purchase.
The information is provided in good faith but is not guaranteed. Technical details should be confirmed before purchase.
