Machine specification

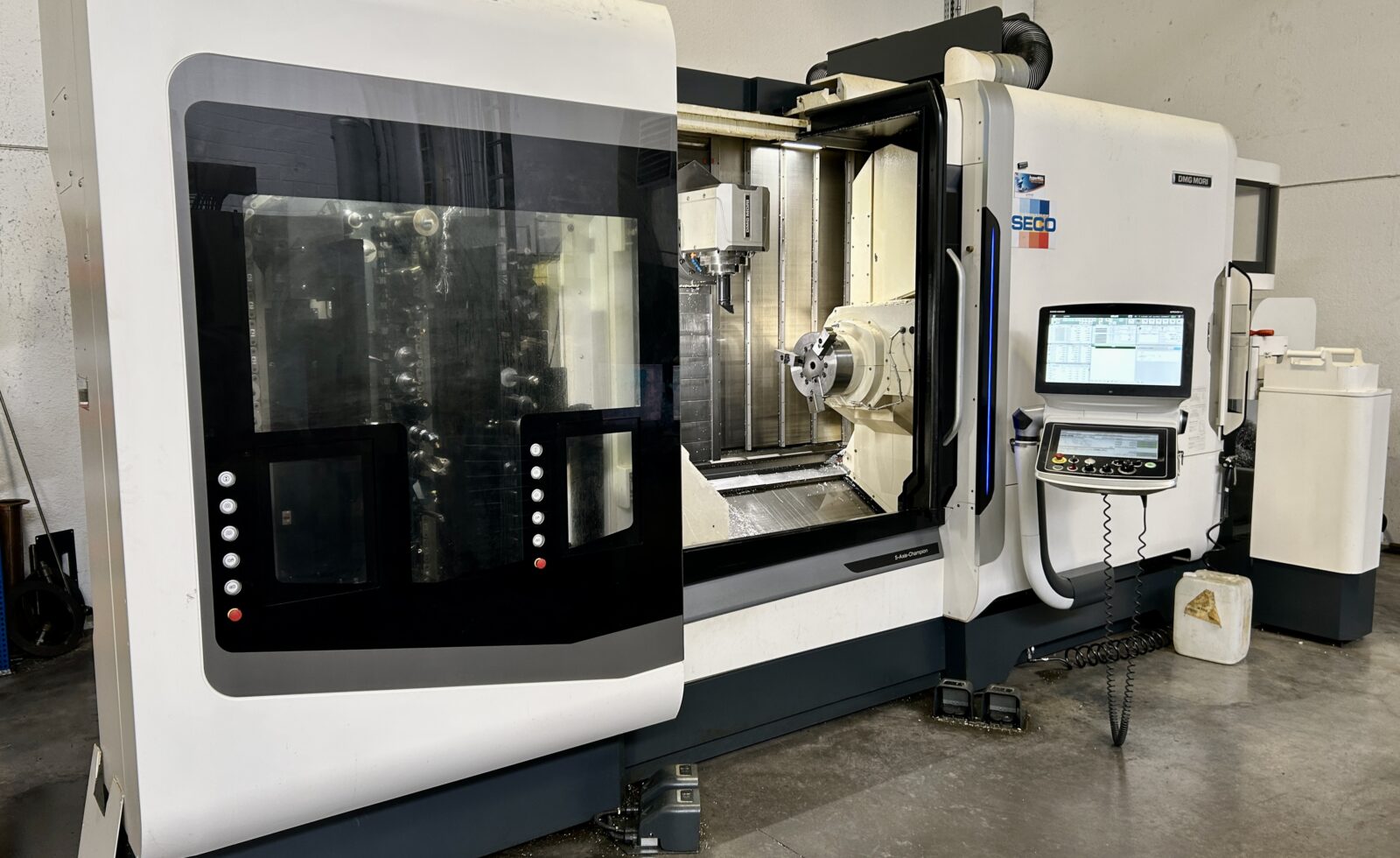

DMG MORI NTX 2500/1500
CNC Turning & Milling Centre
Manufacturer: DMG MORI
Model / Type: NTX 2500/1500
Year: 2020
Control: CELOS ERGOline
Working Range
- X-axis travel: 675 mm (-125/+500 mm)
- Y-axis travel: 300 mm (±150 mm)
- Z-axis travel: 1,562 mm
- Additional ATC travel: 164 mm
- B-axis: 240° (±120°)
Main Spindle
- Maximum spindle speed: 3,000 rpm
- Spindle bore: 91 mm
- Main spindle chuck: 304 mm — KITAGAWA B212
Sub-Spindle
- Maximum spindle speed: 3,000 rpm
- Spindle bore: 91 mm
- Sub-spindle chuck: 304 mm — KITAGAWA N-12
Milling Spindle
- Maximum tool spindle speed: 12,000 rpm
- Spindle taper: CAPTO C6
Tooling
- Tool changer: 76-position ATC
Equipment & Accessories
- RENISHAW
- Mist collector
- Machine manuals
Machine Data
- Machine weight: 18,160 kg
Additional Information
- CNC turning and milling centre equipped with CELOS ERGOline control
- Main and sub-spindle configuration
- 76-position automatic tool changer
- CAPTO C6 milling spindle
- Equipped with RENISHAW and mist collector
- Full list of options available in the attached PDF
Please note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines may be in production at the time of photography and availability cannot be guaranteed. We advise you to check any vital details before purchase.
