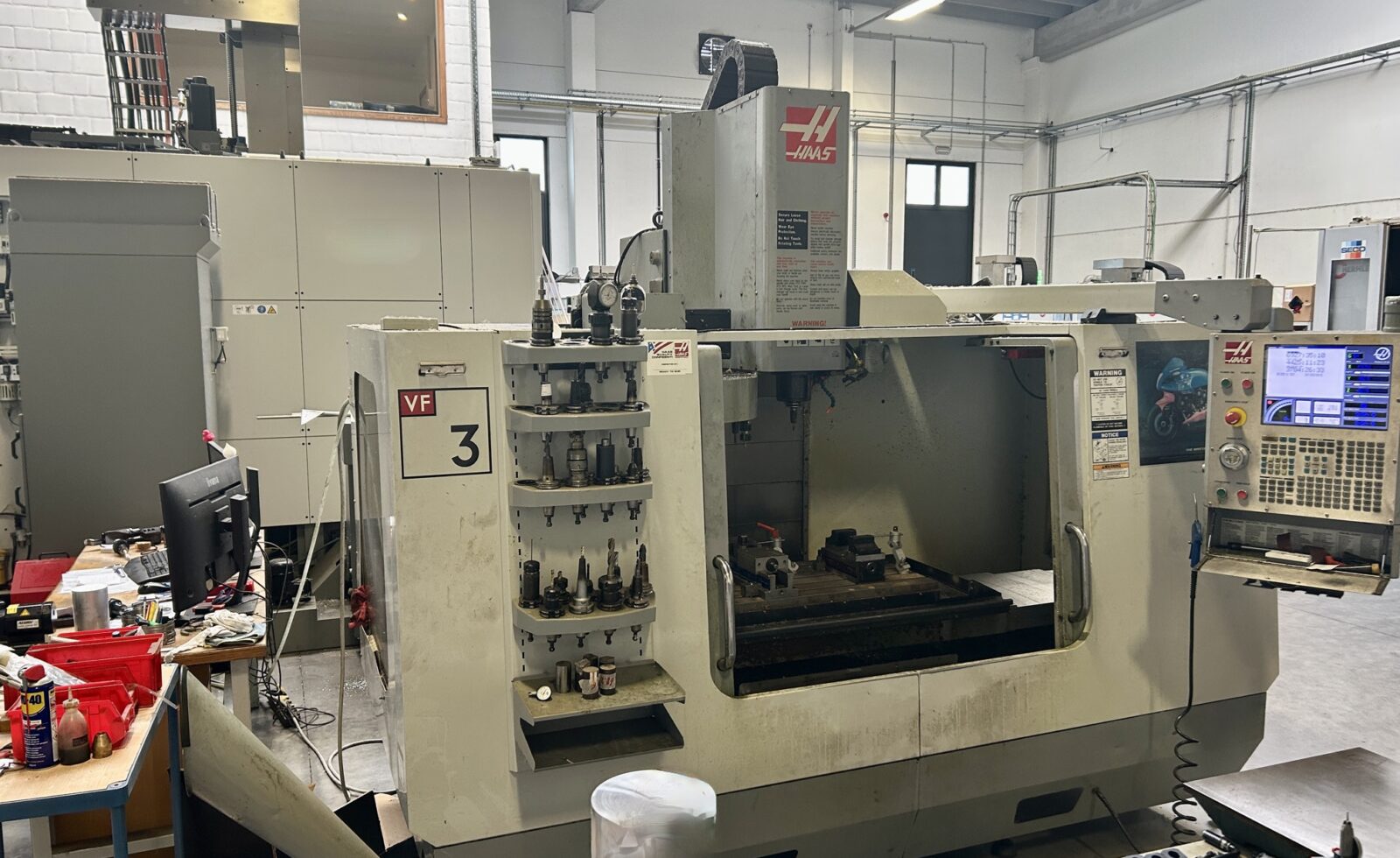

2006 HAAS VF-3BHE CNC Vertical Machining Centre

2006 HAAS VF-3BHE CNC Vertical Machining Centre

Manufacturer: HAAS
Model: VF-3BHE
Year: 2006
Machine type: CNC Vertical Machining Centre
Control: HAAS CNC

Working Area

• X-axis travel: 1,016 mm
• Y-axis travel: 508 mm
• Z-axis travel: 635 mm
• Table size: 1,219 × 457 mm
• Maximum table load: 1,588 kg

Spindle

• Spindle speed: 8,100 rpm
• Spindle power: 22.4 kW
• Spindle taper: 40 taper
• Maximum torque: 122 Nm

Tool Changer

• Automatic tool changer
• Tool capacity: 20
• Maximum tool diameter: 89 mm
• Maximum tool weight: 5.4 kg

Feeds & Rapids

• Rapid traverse X/Y/Z: 25 m/min
• Maximum cutting feed: 16.5 m/min

Coolant

• Coolant tank capacity: 208 litres

Machine Dimensions & Weight

• Overall dimensions: approx. 3,870 × 2,510 × 2,690 mm
• Machine weight: approx. 5,316 kg

Please Note: The above information has been compiled to the best of our knowledge and belief, using information provided by the manufacturer and other available sources where possible. While every effort has been made to ensure the accuracy of the information provided, KRONEX cannot guarantee that all specifications, dimensions, options or other details are complete or accurate. Accordingly, the information provided is for guidance purposes only and does not constitute a representation, warranty or contractual term. Buyers are advised to verify all specifications and any other details that are important to their intended application prior to purchase. Please note that machines may remain in production or may be subject to changes at the time photographs are taken. Specific tooling, accessories and other equipment shown in photographs must therefore be requested and confirmed separately before purchase, as their availability cannot be guaranteed.
